Marvin: EVA Timeline Breakdown

17 May 2018
Show BibTeX citation

This is part 3 of the Marvin series. Here’s part 1 about why extravehicular activity (EVA) operations research matters and part 2 about the way timelines played out on the Moon.

If you don’t remember from last time, exploration EVAs tend to run behind. If we want to plan better, it’s worth looking at the way we currently describe timelines.

Take a look at the series of paper-based timelines below. Compare how the Mercury and Apollo programs were planned to modern ISS missions. There isn’t appreciable difference in the structure of the plans. High-level outlines describe broad phases of the mission and low-level procedures provide minute-by-minute, atomic level details.

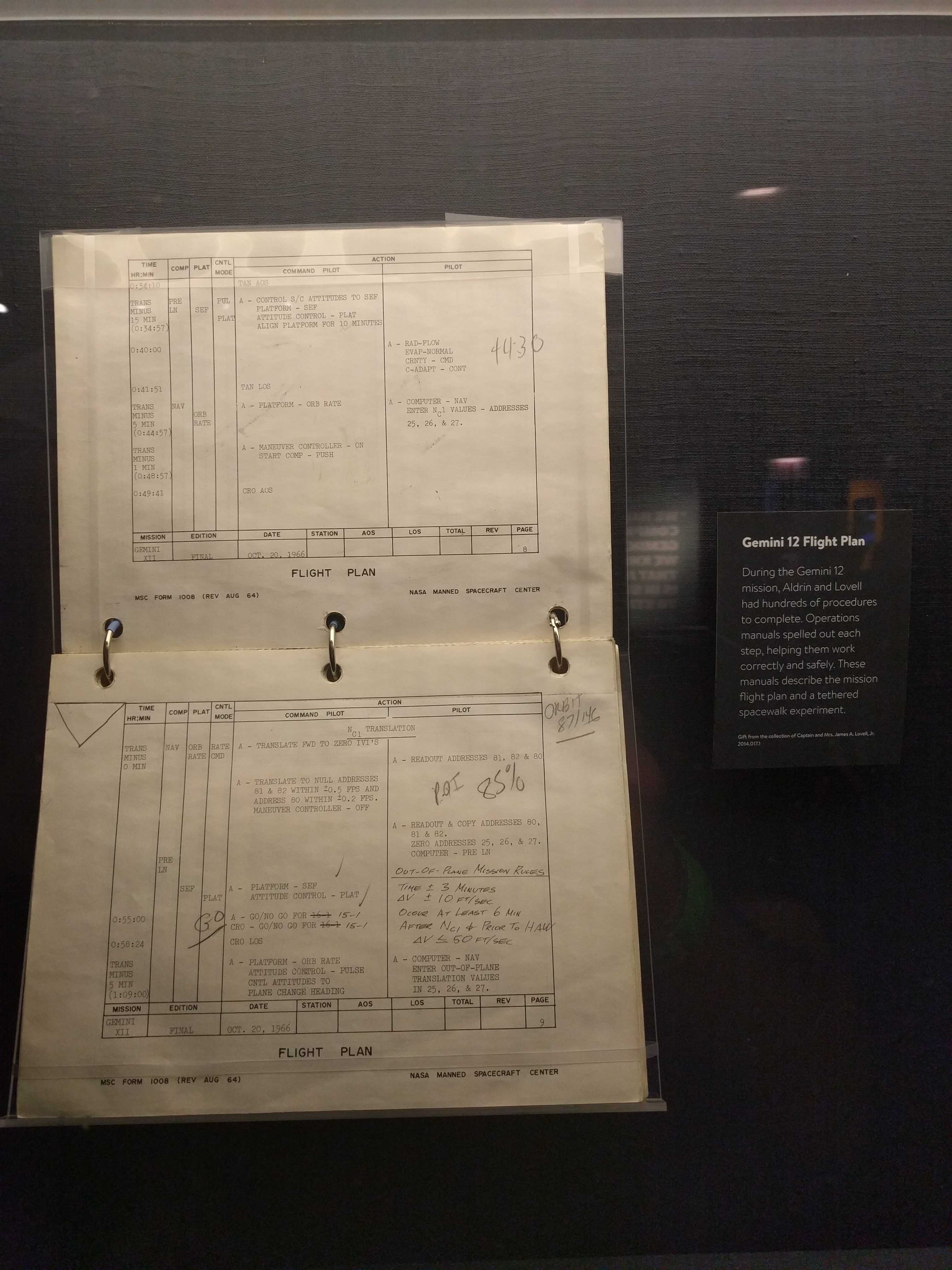

Gemini 12 flight plan that looks like a spreadsheet

This Gemini 12 flight plan has the same structure as today’s EVA timelines. I took this picture at Adler Planetarium in Chicago.

A page from the first EVA of Apollo 17. Note that there are both high level details (“EGRESS”) with detailed procedures (“TURN ON 16 MM CAMERA”) as insets. Miller et al,1 page 9, figure 2.

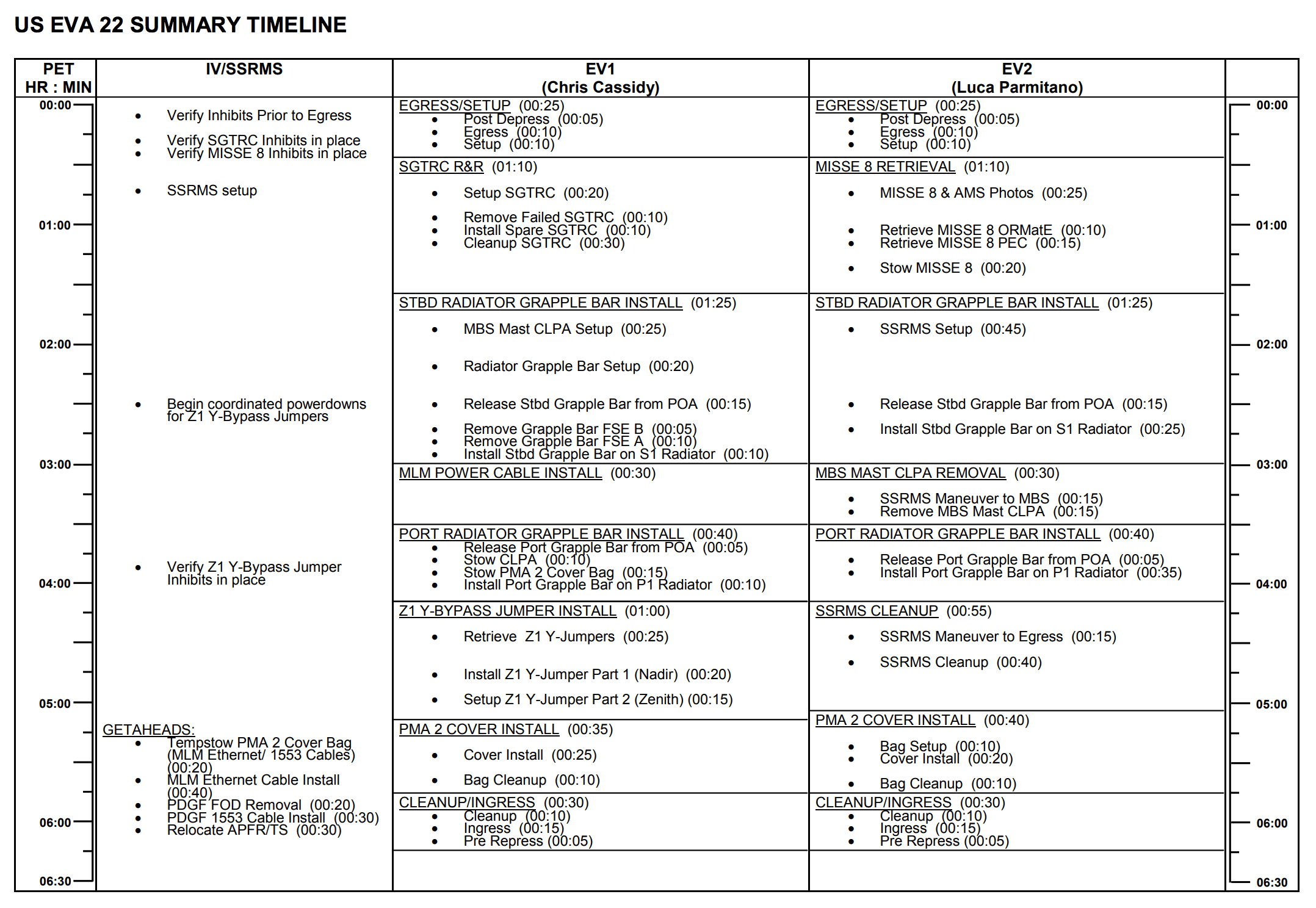

ISS high level summary of a timeline that looks like a spreadsheet with 3 columns of tasks - IV, EV1, and EV2

The high level summary (top) and an example detailed task view (bottom) from the timeline for US EVA 22 on 9 July 2013. Astronauts Chris Cassidy and Luca Parmitano began preparations to install a new ISS module, the Russian Multipurpose Laboratory Module (Nauka or Нау́ка in Russian). They completed this 6 hour timeline almost perfectly on time. Take a look at the bottom of the first column of the detailed task view - you can see boxes where the intravehicular (IV) crew member - the astronaut inside the habitat - is expected to record the number of turns used to install bolts. This level of detail is not uncommon. Check out the full timeline to see why it takes years to prepare for a single spacewalk. Also interesting to note: you can see that EV2 was asked to take a survey photo of the Alpha Magnetic Spectrometer (AMS). This EVA occurred two years after the AMS was launched and, at the time, did not yet need the repairs discussed before - this was just a survey to assess its health.

Using modern and historical timelines as inspiration, Matthew and I designed a hierarchical schema that encapsulates all the information from high level summaries to detailed, minute-by-minute procedures. (Though, as we’ll see in a later post, it does not facilitate timeline calculations in and of itself.) As you move down in the hierarchy what it describes becomes more and more specific.

The hierarchy is as follows: Activity → Task → Subtask → Procedure. At the bottom, a Procedure represents an a single action, such as tightening a bolt. At the top, an Activity describes upwards of hours of mission time. We generalized the idea of an action the astronauts could take on EVA to something we called a Step, with a capital ‘S’ to distinguish it as a formal name for a defined data structure (from now on, capitalized versions of Step, Timeline, Activity, Task, Subtask, and Procedure represent the digital manifestations of their operational counterparts).

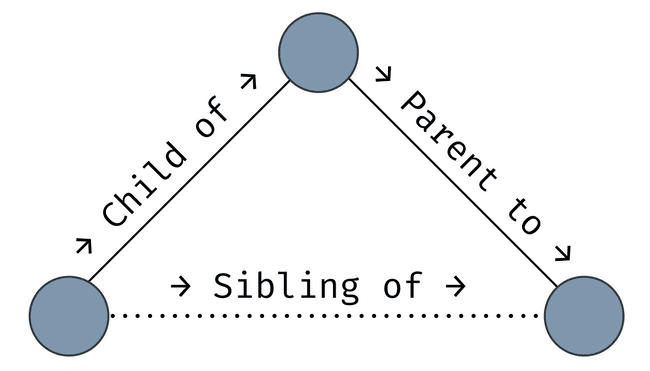

a diagram showing that a node with other nodes that belong to it is the parent of the other nodes, and the other nodes are children of the first. two child nodes of the same parent are siblings.

It’s useful to apply familial terms to describe the relationship between elements in a tree like the Timeline. An Activity is the parent to a Task, while a Task is a child of an Activity. Two Tasks that belong to the same Activity are siblings.

We can translate ISS timelines to our data structure.

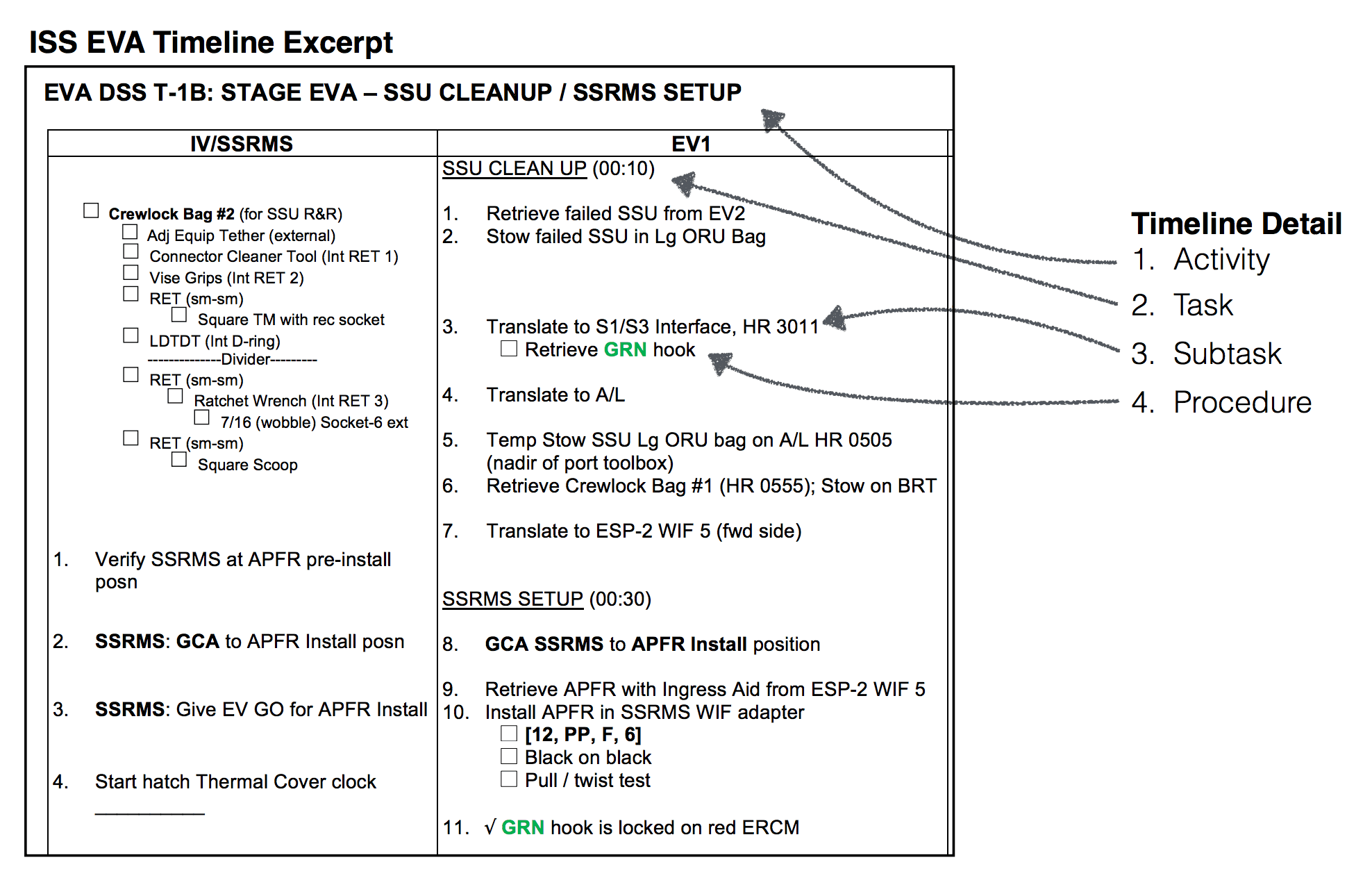

an ISS timeline with annotations to show where each level of the timeline is described

This is how we translated ISS timelines to the schema we designed. For example, you can see that the Task of SSU CLEAN UP has seven Subtasks that belong to it, and the third Subtask has some procedural information that belongs to it. From Matthew’s PhD thesis,1 page 138, figure 4.16.

The naive approach to building a Timeline is relatively straightforward. I’m going to use TypeScript to exemplify how we built it.

A Step only needs a short description to identify it. An expected duration provides the timing data needed to do timeline calculations.

class Step {
	description:      string; // a few word description
	expectedDuration: number; // the amount of time in minutes this Step should take

Additionally, a Step can have zero or more children. This is how we built parent-child relationships.

class Step {
	description:      string;
	expectedDuration: number;
	children:         Step[]; // a list of other Steps

Specifically, an Activity can only have Task children.

class Activity extends Step {
	// everything is the same except...
	children: Task[]; // a list of Tasks

Tasks and Subtasks look the same except for their type of children. Procedures do not have children.

An Envisioned Martian Spacewalk

In order to get a sense for how our Timeline works and its strengths and weaknesses, let’s imagine what one might look like when the first people are roving around doing science on Mars.

a panorama on mars. the sky is tinted blue, a drop into a valley is in the foreground, with the rising edge of a crater in the background

Maybe this is what they’ll see? The Curiosity Mars rover took this amazing panorama of Gale Crater in October 2017. Image copyright NASA/JPL.

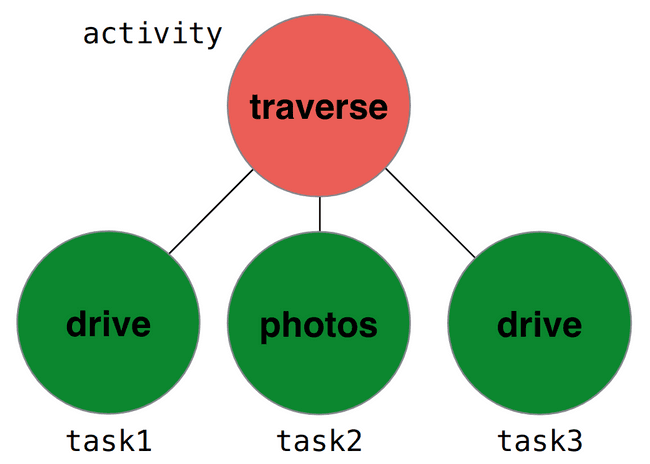

a timeline with an activity parent and three task children

A small example timeline with child, parent, and sibling pointed out.

The Activity is the highest level of the Timeline, so let’s create one first.

let activity = new Activity();  // creates an Activity
activity.description = 'Traverse to Station 1';
activity.expectedDuration = 20; // time in minutes to reach the target location

An Activity can only have Task children. Let’s create the Tasks that we expect astronauts to perform on the way to Station 1.

let task1 = new Task();
task1.description = 'Drive to Checkpoint Alpha';
task1.expectedDuration = 14; // 14 minutes of drive time

let task2 = new Task();
task2.description = 'Photographic survey of outcrop at Alpha';
task2.expectedDuration= 2; // 2 minutes to take photos

let task3 = new Task();
task3.description = 'Finish drive to Station 1';
task3.expectedDuration = 4; // 4 minutes to finish the drive

Right now, we have four freefloating Steps: activity, task1, task2, and task3. We need to give them some structure. To do so, we’re putting the Tasks in a list and making them the children of the Activity.

activity.children = [task1, task2, task3];

Now that there is a relationship between all of the Steps so far, we can sketch what timeline calculations look like.

Coming up next: math!

  1. Matthew’s thesis:
    Miller, Matthew. (2017). Decision Support System Development for Human Extravehicular Activity. 10.13140/RG.2.2.17731.30248.
